Lesson 10: Networking part 2

Agenda

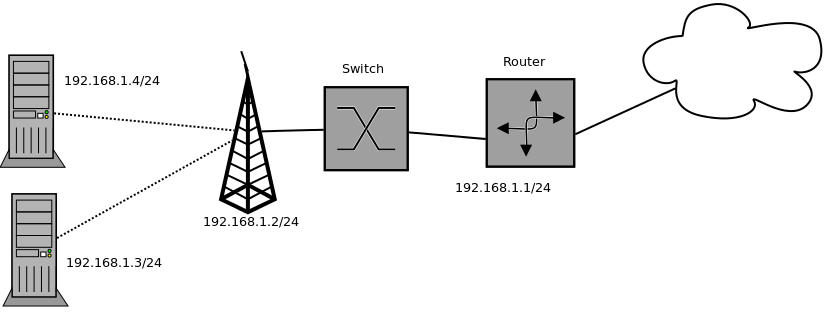

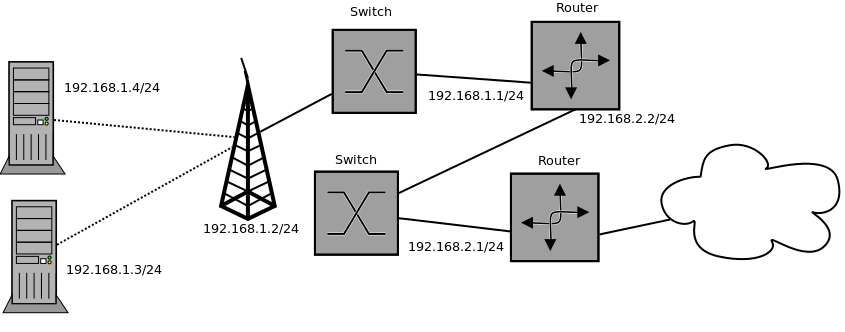

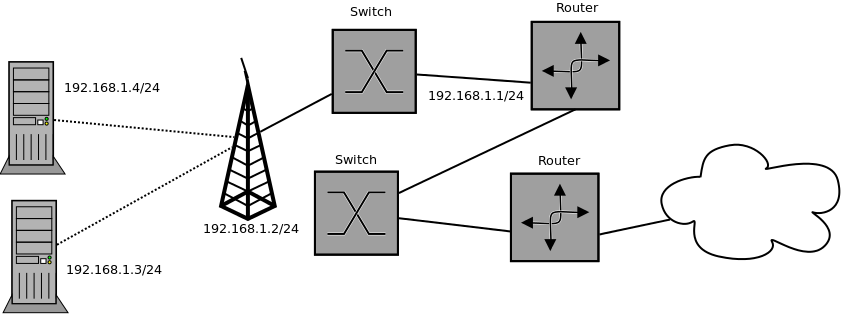

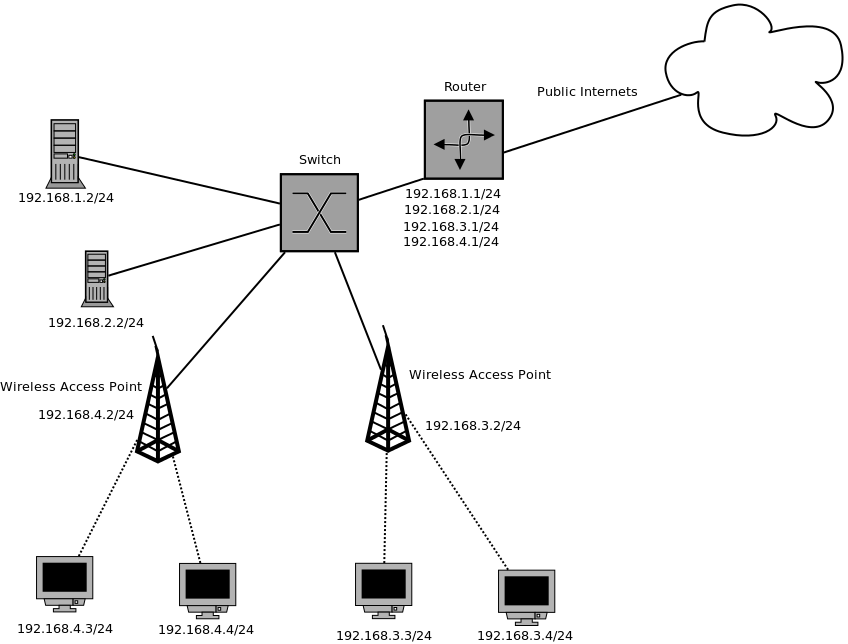

Networking review
DNS
Web Server Setup

Intro to DNS

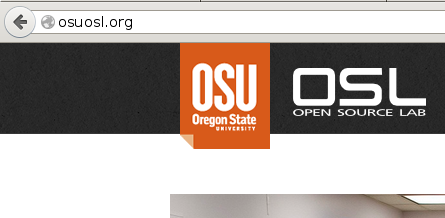

I get the OSL's home page when visiting osuosl.org

How do I know where the page came from?

HOST(1)                       BIND9                       HOST(1)

NAME
       host - DNS lookup utility

SYNOPSIS
       host [-aCdlnrsTwv] [-c class] [-N ndots] [-R number]
            [-t type] [-W wait] [-m flag] [-4] [-6] {name}
            [server]

DESCRIPTION
       host is a simple utility for performing DNS lookups. It is
       normally used to convert names to IP addresses and vice
       versa. When no arguments or options are given, host prints
       a short summary of its command line arguments and options.

OSL

$ host osuosl.org
osuosl.org has address 140.211.15.183

How did it know?

DNS

Domain Name System

Port 53

My laptop asked a DNS server how to get to osuosl.org.

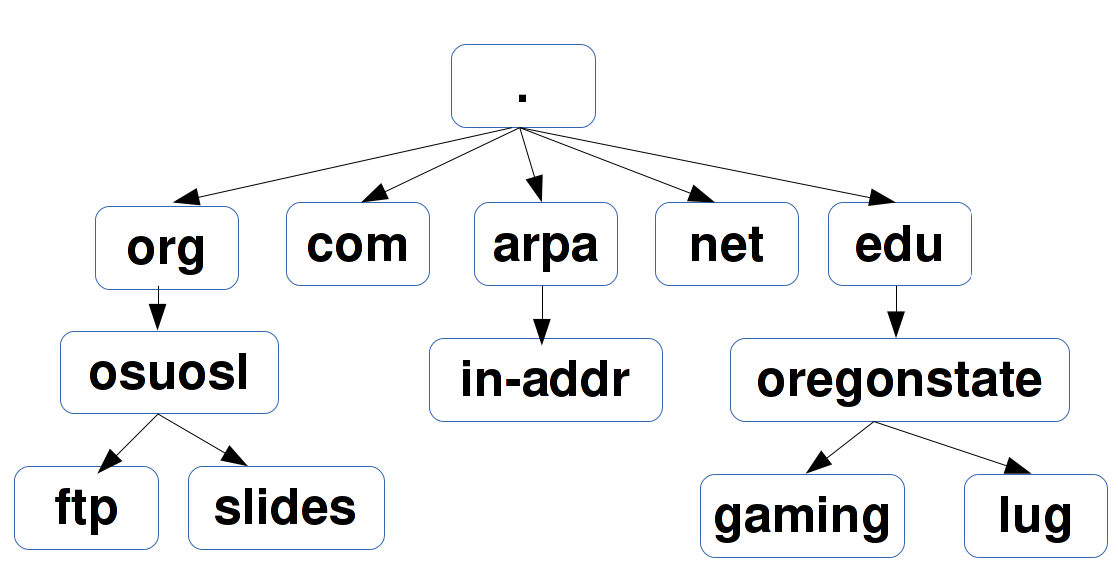

Hierarchy of domains

Pop quiz

What's 15 * 823?
12345

Recursive DNS

_images/An_example_of_theoretical_DNS_recursion_wikimedia.png

Always gives real answer or error
Vulnerable to cache poisoning

Non-recursive

Uses cache or referral
Includes all authoritative-only
- root and top-level domain servers

Another Quiz

What's 15 * 823?
How did you know so quickly?

Caching

You cached the answer.
DNS can be cached at routers, ISPs, and DNS servers to improve performance.
- Negative caching: Remember fails
TTL

/etc/resolv.conf

Configuration for BIND (Berkeley Internet Name Domain tool)

most common DNS resolver
current version is BIND 9

$ cat /etc/resolv.conf
# Generated by resolvconf
domain wireless.oregonstate.edu
nameserver 128.193.15.13
nameserver 128.193.15.12

Can only handle recursive name servers, no referrals

/etc/hosts

Used to skip looking up the DNS

Useful for testing web sites

Avoid malicious sites

$ cat /etc/hosts
127.0.0.1 devops-bootcamp32.osuosl.org devops-bootcamp32 localhost
localhost.localdomain localhost4 localhost4.localdomain4
::1       localhost localhost.localdomain localhost6 localhost6.localdomain6

Load Balancing

Multiple IPs bound to a single hostname are returned in random order

$ host google.com
google.com has address 173.194.33.131
google.com has address 173.194.33.132
google.com has address 173.194.33.133
google.com has address 173.194.33.134
google.com has address 173.194.33.135
google.com has address 173.194.33.136
google.com has address 173.194.33.137
google.com has address 173.194.33.142
google.com has address 173.194.33.128
google.com has address 173.194.33.129
google.com has address 173.194.33.130

Records

Note

rfc 1035

A:	hostname -> IPV4 address
AAAA:	hostname -> IPV6 address
CNAME:	like an alias, "Go look up this name's record"
PTR:	Pointer to a canonical name, returns name and stops Used in reverse DNS
SOA:	Start of Authority for a zone (such as osuosl.org) Administrator contact info, timers, serial number
MX:	Email (more on this next week)

Reverse DNS

Note

http://support.simpledns.com/kb/a45/what-is-reverse-dns-and-do-i-need-it.aspx

Reverse segments, then end with in-addr.arpa

$ host osuosl.org   # could also use dig
osuosl.org has address 140.211.15.183

$ dig 183.15.211.140.in-addr.arpa
...
;; AUTHORITY SECTION:
15.211.140.in-addr.arpa. 10795  IN  SOA ns1.auth.osuosl.org. hostmaster.osuosl.org. 1398356710 300 900 604800 86400

Web Apps: A Bit of Review

We created a python app called Systemview using the Flask framework
We tested Systemview by running Flask's built-in webserver on the command line
Systemview ran on a special port we had to open up on the virtual machine

What We Want To Do

Install a production-quality web server on a standard port
Serve Systemview using that web server
Party

Why?

Flask's web server is not robust or secure
We want to use standard ports for our web apps
We may want to run multiple apps on one server
Web server administration is cool

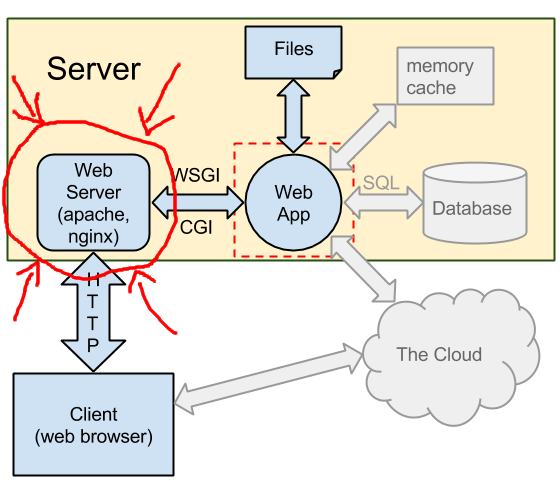

What is a Web Server

_images/web_app_diagram-server-highlight.png

Note

Webserver software, not hardware

Webservers Talk HTTP

They don't run code (well, they kinda do)

PHP, Python, Ruby, C don't run in your browser
Separate servers (usually) run that code, and send the output of the code to the web server to send to your browser
Sometimes those separate servers are web server modules

Note

Apache modules generally run in the apache process itself

A Digression: AJAX, JSON and APIs

Browsers render HTML/CSS (layout)
Browsers execute Javascipt (logic)
Javascript can dynamically update the layout
Javascript can handle user interaction
Javascript can call back to the server for more data
Javascript can process data
Javascript is Client Side Logic

AJAX

Asynchronous Javascript And XML
An http request initiated by Javascript
Javascript listens in the background
The app sends a response containing data
Javascript processes the data
Traditionally XML, but now mostly JSON

Note

Lots of issues around security, javascript calling many servers, gathering data, calling servers outside the domain of the originating page, etc. Install RequestPolicy and NoScript, just to see who that web page is talking to while you read it.

JSON

JavaScript Object Notation

{"menu": {
  "id": "file",
  "value": "File",
  "popup": {
    "menuitem": [
      {"value": "New", "onclick": "CreateNewDoc()"},
      {"value": "Open", "onclick": "OpenDoc()"},
      {"value": "Close", "onclick": "CloseDoc()"}
    ]
  }
}}

XML

The same text expressed as XML:

<menu id="file" value="File">
  <popup>
    <menuitem value="New" onclick="CreateNewDoc()" />
    <menuitem value="Open" onclick="OpenDoc()" />
    <menuitem value="Close" onclick="CloseDoc()" />
  </popup>
</menu>

APIs

When web apps talk to web apps
When javascript talks to a web app
When curl talks to a web app

They talk HTTP, using clearly defined GET or POST params to initiate actions on the remote application.

curl http://graph.facebook.com/12345/friendlists
curl https://api.github.com/users/osuosl/repos
curl http://pub.sandbox.orcid.org/v1.1/0000-0001-7857-2795/orcid-bio

Note

Take a look at the source of a web page, look at all the javascript! How much of it is talking to Google, to Facebook, etc?

Let's Install a Web Server!

yum install httpd

Apache

What's this httpd thing?

"A patchy web server" - born of many patches to NCSA's HTTPD (1995)

Venerable, tested, solid
Old, complex, slow (not really that slow)
Many modules for executing code
Many modules for all kinds of other things too

Let's Serve Some Web

Apache's DocumentRoot is the default place where it will look for files to serve. It maps "/" in the URL to a location on disk

http://localhost:8080/index.html
                     ^
                     "/" is the DocumentRoot

We'll write some HTML in the DocumentRoot for Apache to serve.

But First, Config Files

/etc/httpd/conf/httpd.conf

DocumentRoot "/var/www/html"

<Directory "/var/www/html">
    Options Indexes FollowSymLinks
    AllowOverride None
    Order allow,deny
    Allow from all
</Directory>

Note

Just looking, we are not editing the configs here. Note the DocumentRoot and Directory

Wait, What am I Writing Again?

HTML: Hyper Text Markup Language

Go to the DocumentRoot and create an html file:

cd /var/www/html
vim index.html

<html>
    <head>
        <title>This is only a test!</title>
    </head>
    <body>
        <p>Nothing to see here, move along</p>
    </body>
</html>

Point your browser to: http://localhost:8080/index.html

Note

HTML, is it code? Is it a language? Can you do logic with it? What happens if you forget the <html>? The browser does the rendering, the web server doesn't care, it just sends the data along. HTTP Content-Type header says what kind of data.

Voila!

Apache receives a request for /index.html
It translates "/" into /var/www/html using the DocumentRoot directive
It looks in /var/www/html for the file "index.html"
It finds your file and sends its contents, along with HTTP headers, back to your browser

Note

Have a look at the page source. Edit the file, remove <html>, etc, look at source again. If time allows, use developer tools, firebug, etc to look at http headers

But I Want to Run Code!

Let's put some PHP code in the DocumentRoot:

vim index.php

<html>
    <head>
        <title>This is only a test!</title>
    </head>
    <body>
        <?php print "Hey, this is PHP!" ?>
    </body>
</html>

Then go to http://localhost:8080/index.php

What Went Wrong?

Apache doesn't know what PHP is, it needs a module to execute the PHP code and return data it can serve

yum install php
service httpd restart

Note

Pop quiz - where do you look to find out what went wrong? Look at log files, talk about them, then look at page source.

Voila, Again.

How does Apache know what to do with index.php?

/etc/httpd/conf.d/php.conf

<IfModule prefork.c>
  LoadModule php5_module modules/libphp5.so
</IfModule>
<IfModule worker.c>
  LoadModule php5_module modules/libphp5-zts.so
</IfModule>

AddHandler php5-script .php
AddType text/html .php

DirectoryIndex index.php

Note

CentOS, and most distribution system packages put these conf files for modules in place for you. httpd.conf includes everything in conf.d - similar for Nginx

Ok, But I Want To Serve a Python App...

There's a module for that! (Actually several, but we are going to use this one)

WSGI: Web Server Gateway Interface

Standardized interface for python apps to talk to web servers
Works with many different servers
Allows separation of python app and web server processes

Note

talk about mod_python - runs python scripts directly, not bad for single scripts, but unwieldy for applications and frameworks.

Sounds Great, Let's Go!

yum install mod_wsgi

Let's clone the systemview app into a reasonable location while we are at it

cd /var/www
git clone https://github.com/DevOpsBootcamp/systemview.git
cd systemview
git checkout wsgi

Note

Talk about the location - can be anywhere, but be consistent - /var/www is actually not in the web root, not accessible by default, don't put things under the docroot!

Don't Forget Virtualenv!

(in the systemview/ directory)

virtualenv --no-site-packages venv
source venv/bin/activate
pip install -r requirements.txt

And lets make sure everything is owned by the web server:

chown -R apache ../systemview

Note

Web server user/group ownership is a major source of breakage - get cloning/pulling as the wrong user will change perms on files, possibly breaking things

What Makes an App WSGI?

systemview.wsgi

activate_this = '/var/www/html/systemview/venv/bin/activate_this.py'
execfile(activate_this, dict(__file__=activate_this))

import sys
sys.path.insert(0, '/var/www/html/systemview')

from systemview import app as application

Configuring Apache for Systemview

/etc/httpd/conf.d/systemview.conf

WSGISocketPrefix /var/run
WSGIDaemonProcess systemview user=apache group=apache threads=5
WSGIScriptAlias /systemview /var/www/systemview/systemview.wsgi

<Directory /var/www/systemview>
        WSGIProcessGroup systemview
        WSGIApplicationGroup %{GLOBAL}
        Order deny,allow
        Allow from all
</Directory>

(Look for this in systemview/docs/systemview.conf)

Note

This will go into a vhost some day

Even More Voila

http://localhost:8080/systemview

There are a lot of steps to getting this app up, wouldn't it be nice to automate this?

Note

Future topics - configuration management and automated deploys, virtual hosts, best practices for app location, Nginx, UWSGI, PHP-FPM, etc

Homework

Deploy Systemview's master branch with Apache (we merged the database code)
Read about Apache Virtualhosts
Install Nginx and UWSGI, deploy Systemview
